H-Brug BTS7960B 43A PWM

H-Brug BTS7960B 43A PWM

Specificaties:
Ingangs voltage: 6V-27V
Maximaal vermogen: 43A
Stuur spanning: 3.3V-5V

Control mode: PWM or horizontal

Afmeting: 5cm x 5cm x 1.2cm

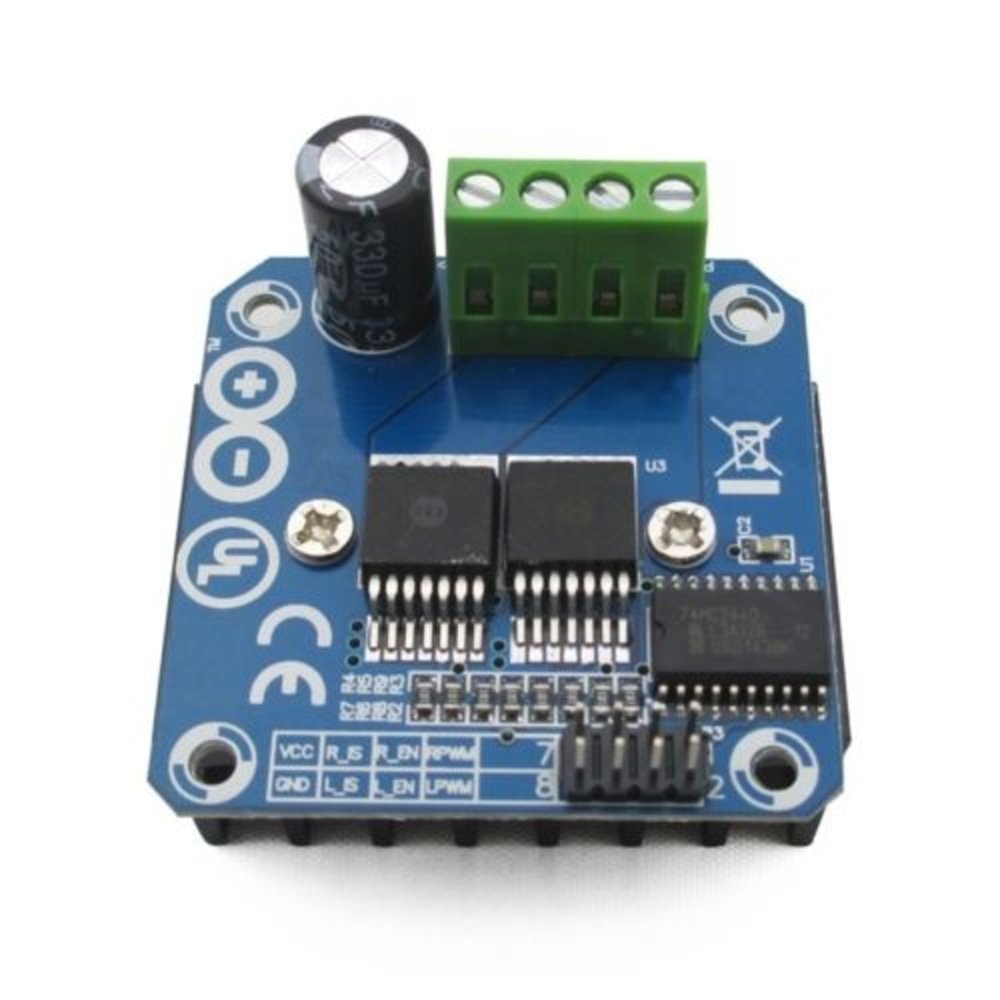

The drive uses a full H-bridge driver module Infineon chip BTS7960 composed of high-power drive, with overheating overcurrent protection. Pair BTS7960 H-bridge driver circuit, with a strong drive and braking effect, effectively isolate the microcontroller and motor driver!

Features:
1. double BTS7960 high current (43A) H-bridge driver.
2. and MCU 5V isolation, effective protection of the microcontroller.
3. enables the motor forward reverse, two-way 25kHZ highest frequency PWM input.
4. two passing streams overheat error signal output.
5. isolation chip 5V power supply (5V can be shared with the microcontroller).
6. Power supply voltage: 5.5V to 27V.
This product is suitable for driving: coreless motor, general motor, thermoelectric cooling module, solenoid valves, solenoid coils.

Electronisch schema module

Datasheet
