Joystick module

Joystick module

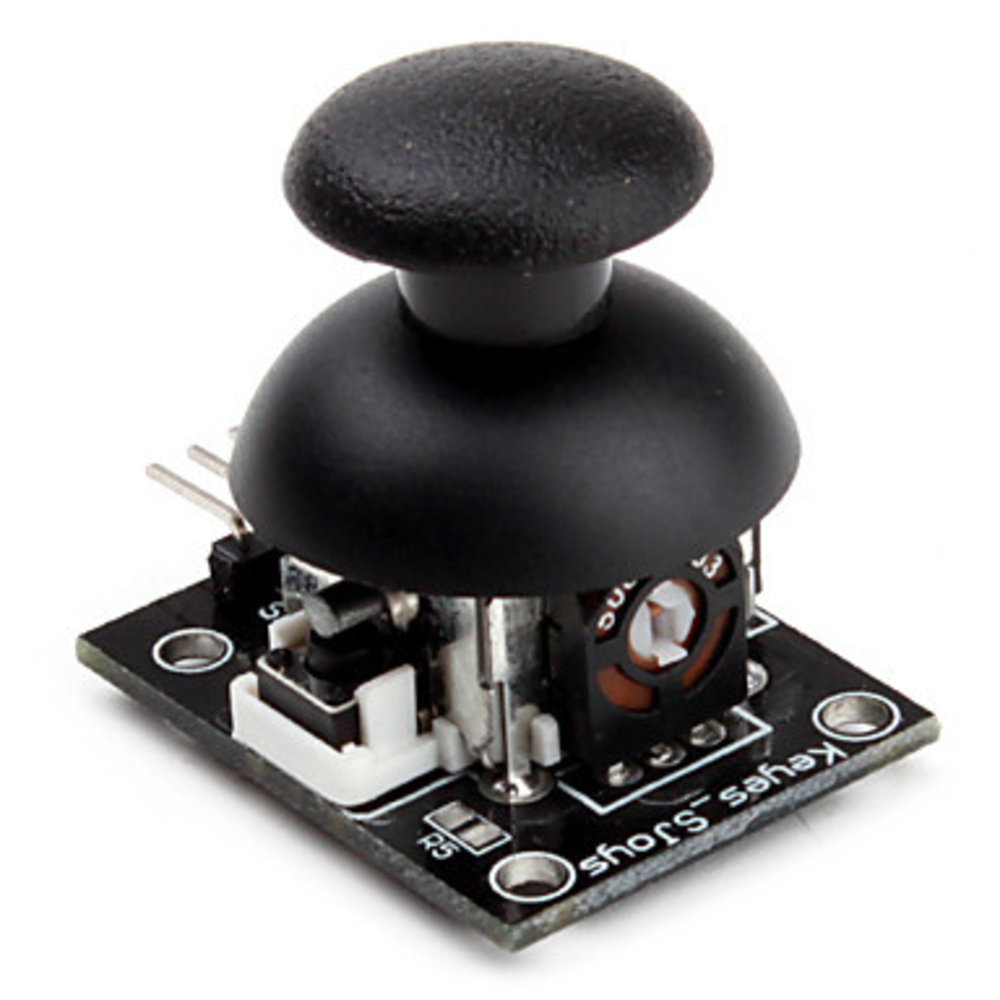

Joystick module met twee potentiometers. ( 10 KOhm )

Test Sketch:

int value =0;voidsetup(){	//pinMode(A0, INPUT);
	//pinMode(A1, INPUT);
pinMode(7,INPUT_PULLUP); //set pin 7 as an input and enable the internal pull-up resistor
Serial.begin(9600);}voidloop(){
  value =analogRead(A0);	// read X axis value [0..1023]
Serial.print("X:");Serial.print(value, DEC);

  value =analogRead(A1);	// read Y axis value [0..1023]
Serial.print(" | Y:");Serial.print(value, DEC);

  value =digitalRead(7);	// read Button state [0,1]
Serial.print(" | Button:");Serial.println(value, DEC);delay(100);}
