Laad converter XL4015

Laad converter XL4015

Let op dat u de potentiometer niet te hard door draait. Dan zal deze doldraaien en functioneert de module niet meer!
Begin met draaien naar links (tegen de klok in)

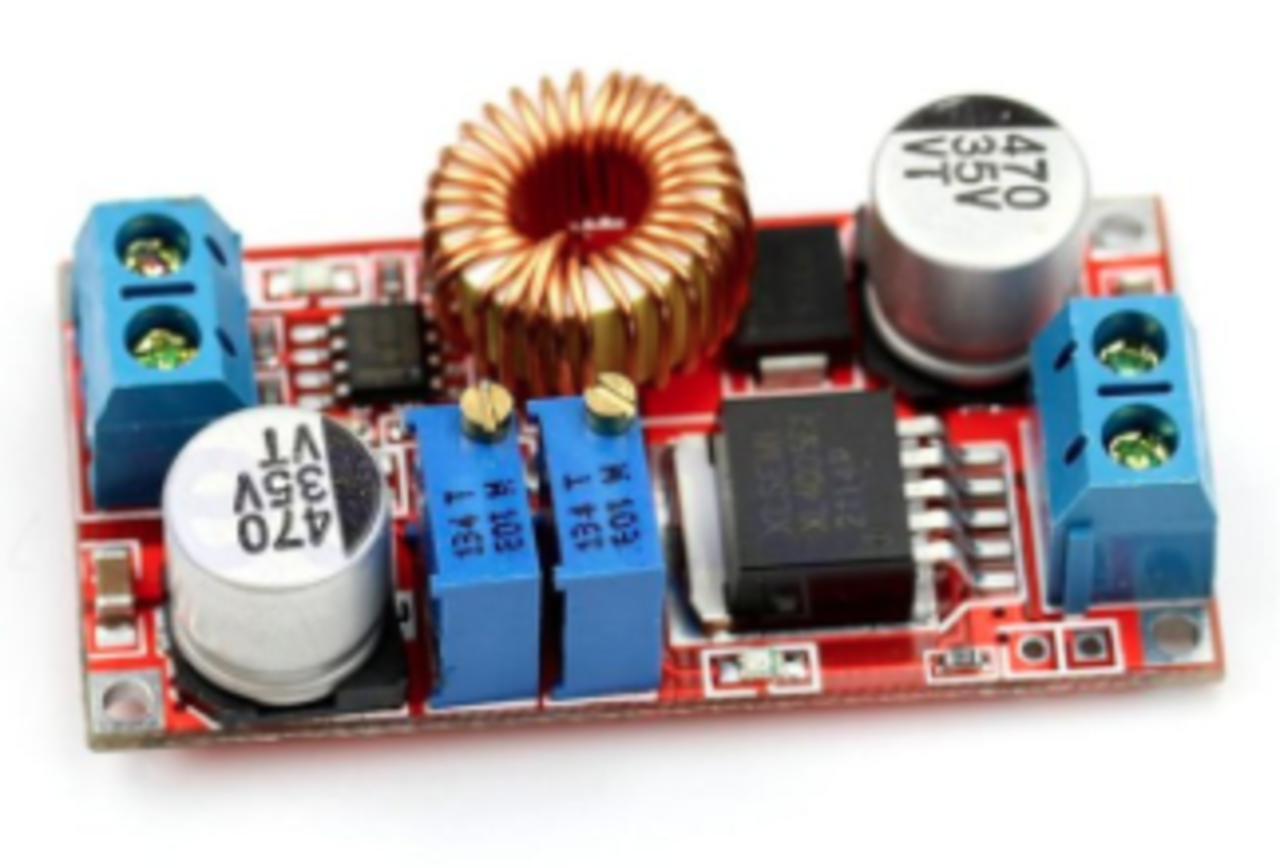

XL4015 CC/CV Adjustable 5A Step Down Buck Lithium Battery Charger Converter Module is a linear module that has constant voltage and constant current function (CC CV) and it has a good performance.When you use it as a charger. this module use good chip as core and it is stable. also its ripple is low to 50mV.Specifications:

• Size: 51 * 26.3 * 14 (L * W * H) (mm)
• Operating Temperature: -40 ? to 85 ?
• Voltage Regulation: ? 2.5%
• Load Regulation: ? 0.5%
• Output ripple: 50mV (max) 20M bandwidth
• Switching frequency: 300KHz
• Conversion efficiency: 95% (the highest)
• Output current: adjustable maximum 5A
• Output voltage: 0.8V-30V
• Input voltage: 5V-32V
• Rectification: non-synchronous rectification
• Module Properties: non-isolated constant current and voltage module.

Advantage:

• CC CV
• Low ripple
• When the module charges a battery, it first use constant current to protect the battery. check the curse above.

Applications:1. Use as a step-down modules with overcurrent protection capabilities.
Usage:

• Adjust the ?voltage potentiometer? so that the output voltage reaches the value you want.
• Use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the ?current potentiometer? so that the output current reaches a predetermined overcurrent protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of 4A)
• Connected to the load.

2. Use as a battery charger.
Usage:

• Make sure you need to charge the battery float voltage and charging current (if lithium parameters 3.7V/2200mAh, then the float voltage is 4.2V, the maximum charging current 1C, ie 2200mA)
• Under no-load conditions, adjust the ?Voltage potentiometer? so that the output voltage reaches the float voltage (if to 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V)
• Use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the ?current potentiometer? so that the output current reaches a predetermined Charging current value.
• Charge turn lamp current factory default is 0.1 times the charging current (Battery during charging current is gradually reduced, if the charge current setting is 1A, then when the charge current is less than 0.1A, blue lights turned off, the green light is on, which means that the battery is fully charged)
• Connected to the battery charge.
• (1,2,3,4 steps as: Output is unloaded, do not connect the battery)

3. Use as a LED constant current driver module.
Usage:

• Adjust the ?voltage potentiometer? so that the output voltage reaches the value you want.
• Use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the ?current potentiometer? so that the output current reaches a predetermined LED operating current.
• Connect LED, work.
• (1,2 steps as: Output is unloaded, do not connect LED)

Package Included:1 PCS* 5A Lithium Charger Step down Module
