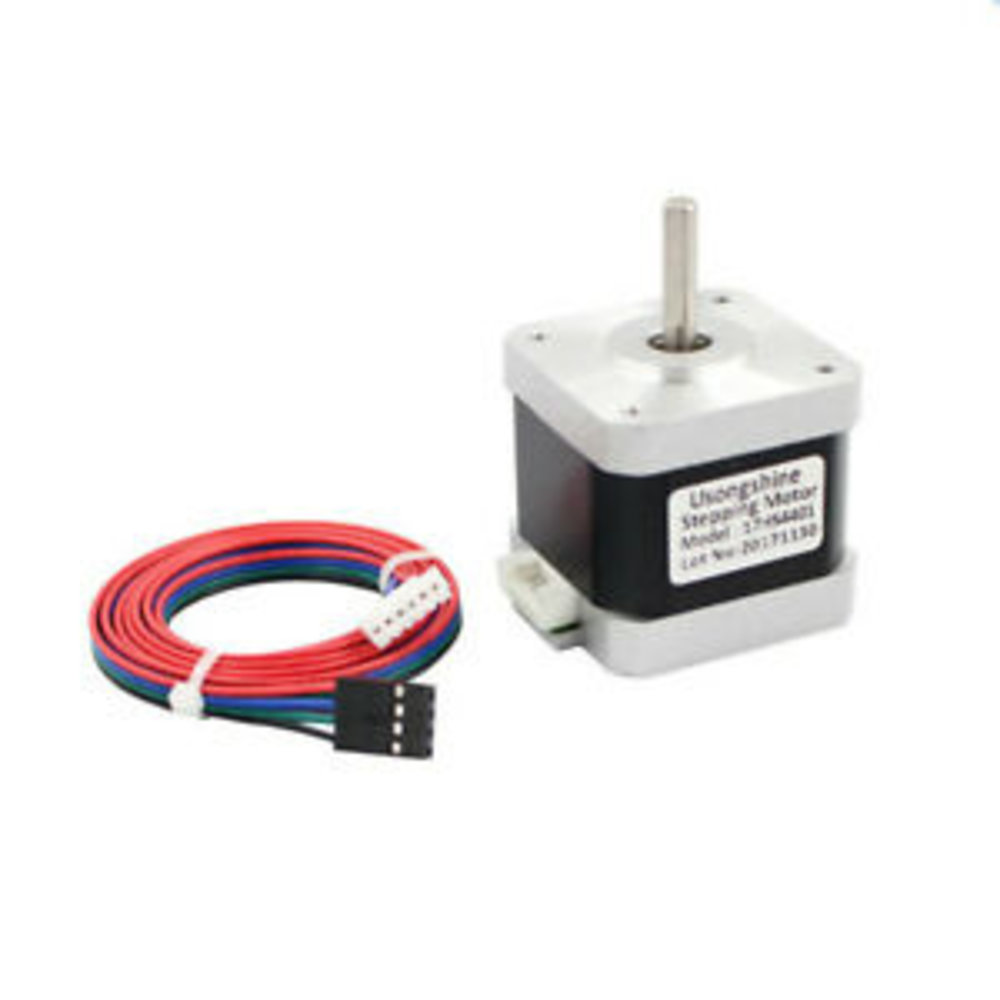

Stappenmotor 17HS4401 Nema 17

Stappenmotor 17HS4401 Nema 17

Kabel heeft aan beide zijden dezelfde stekker.

Te gebruiken met deze steun

• Electrical Specification:
• Motor Type: Bipolar Stepper
• Step Angle: 1.8 deg.
• Holding Torque: 40N.cm (56oz.in)
• Rated Current/phase: 1.7A
• Phase Resistance: 1.5Ohm±10%
• Insulation Resistance: 100MΩ¸ Min, 500VDC
• Insulation Strength: 500VAC for one minute
• Physical Specification:
• Frame Size: 42 x 42mm (1.7 inch x 1.7 inch)
• Body Length: 40mm
• Shaft Diameter: 5mm
• Number of Wire Leads: 4
• Wire Length: 400mm
• Weight: 280g
• Temperature rise: 80deg Max(rated current, 2 phase on)

Rood B+
Groen A-
Zwart A+
Blauw B-
