TDA7492 2x50W D klasse- hoog vermogen digitale versterker

TDA7492 2x50W D klasse- hoog vermogen digitale versterker

Specificaties

● Voedingsspanning: 10-26V DC
● Maximaal vermogen: 50W*2 / 8 Ohms
● Mono vermogen: 100W / 4 Ohms
● Afmetingen:71x60x20mm

 Set wordt geleverd incl gemonteerd koelrib.

Belangrijk !

● Wanneer de speaker impedantie 4 ohm is, mag het voltage niet hoger zijn dan 18V.
● Wanneer de speaker impedantie 6 ohm is, mag het voltage niet hoger zijn dan 24V.
● Wanneer de speaker impedantie 8 ohm is, mag het voltage niet hoger zijn dan 26V.
● Let op ! De voedingsspanning polariteit niet wisselen ! Dit heeft schade als gevolg.

FABRIEK SPECIFICATIES:

TDA7492 Digital Audio Amplifier Board 2x50W

Originally designed for high-end televisions, this tiny amp board delivers 50 watts into two channels. Use this Class D amplifier in DIY projects where high power is needed in a limited space.

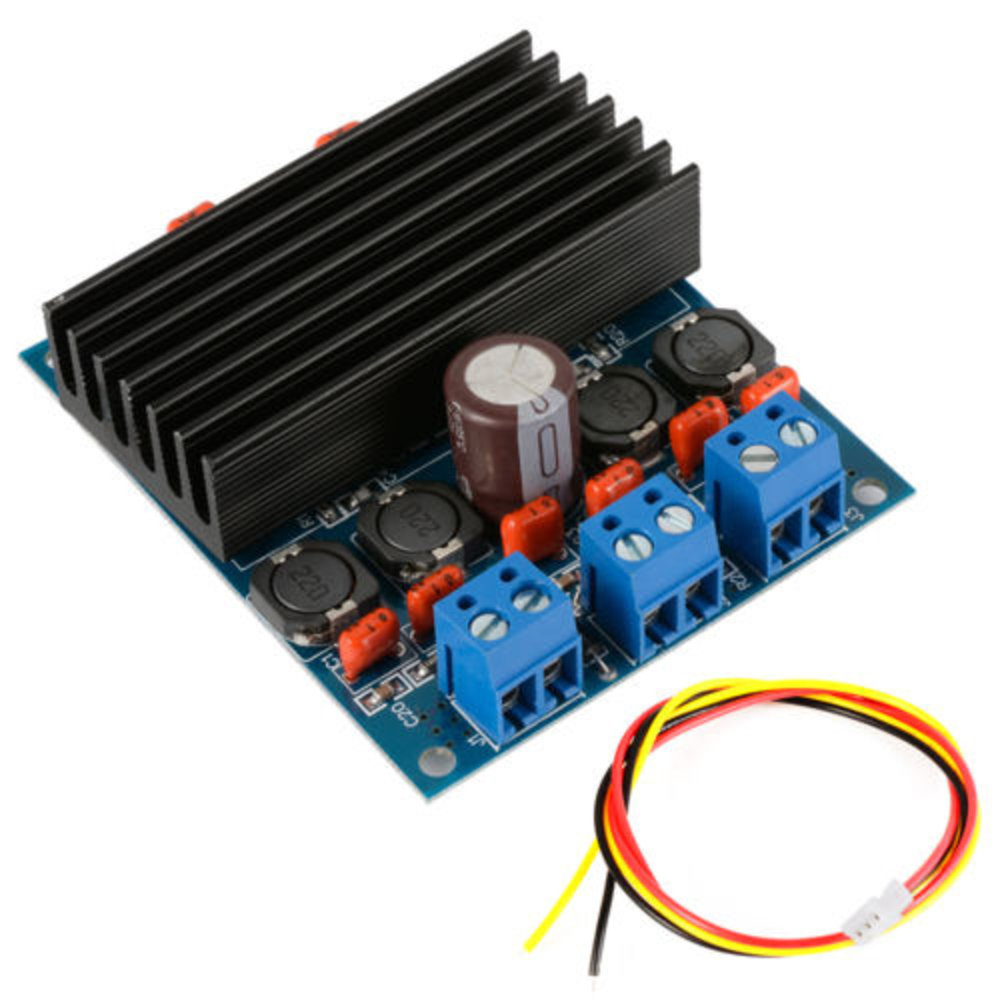

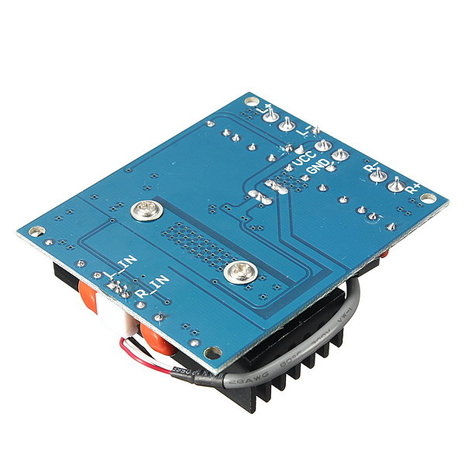

The board includes a massive heat sink, and three dual-terminal phoenix connectors for easy termination of speaker lines. Included in the box is a 8" stereo input lead, making connection a breeze. Depending on the voltage powering the unit, you will need 1A to 4A of current.

Note: When the speaker impedance is 4 ohms, the operating voltage must be less than 18V. When the speaker impedance is 6 ohms, the operating voltage can not exceed 24V. When the speaker impedance is 8 ohms, the working voltage can not exceed 26V.

Specifications: Power handling: 2 x 50 watts @ 8 ohms • Minimum impedance: 4 ohms • THD: 0.1% @ 8 ohms @ 1 watt • Recommended power supply: 10V - 26V • Requires 1A - 4A • Stereo wiring harness included • Dimensions: 2-3/4" L x 2-5/16" W x 7/8" H.
