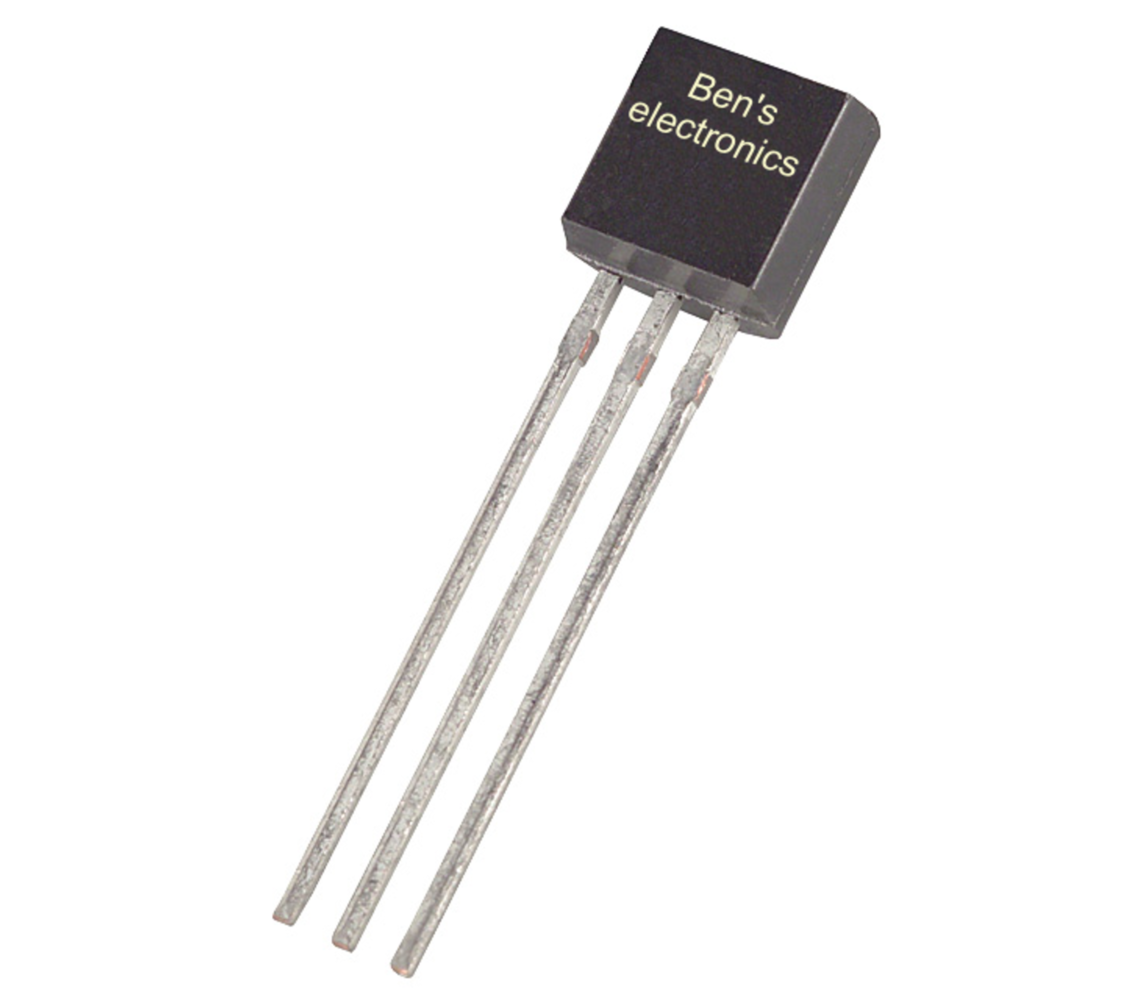

Type Designator: C1815

C1815 Transistor

Type Designator: C1815

SMD Transistor Code: HF

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.2 W

Maximum Collector-Base Voltage |Vcb|: 60 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.15 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 80 MHz

Forward Current Transfer Ratio (hFE), MIN: 130
