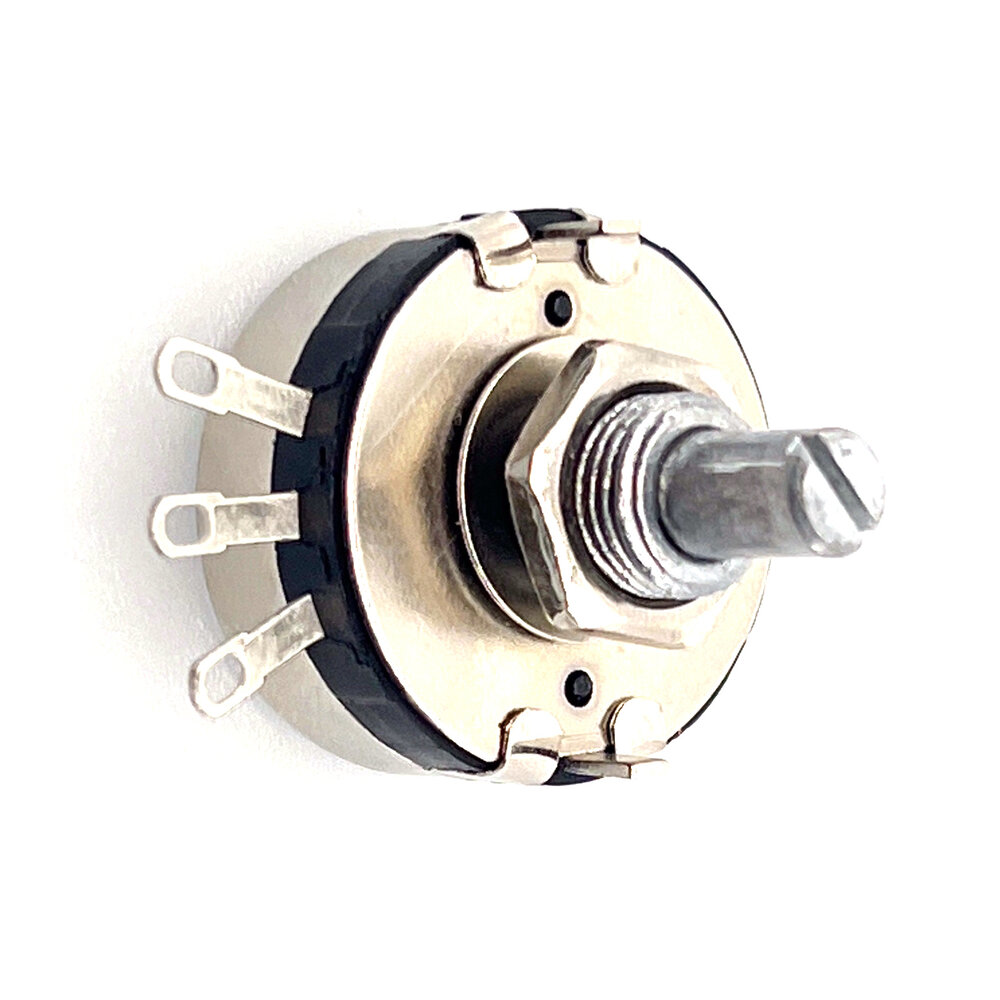

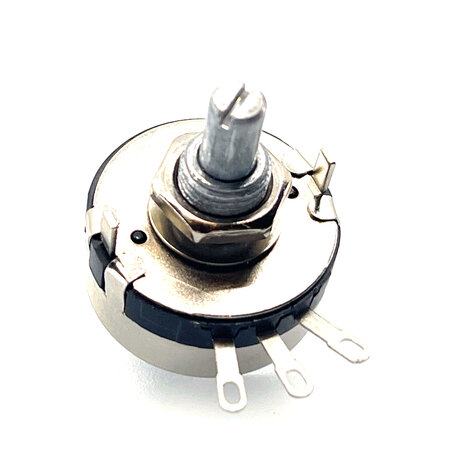

WTH118 potentiometer 10K 2 Watt



Productomschrijving
WTH118 potentiometer 10K 2 Watt
Klik hier voor een geschikte knop
Specification
Type: | Rotary Potentiometer |
Technology: | Carbon Film |
Resistance: | 20% |
Rated Power: | 2W |
Max. Operating Voltage | 900V |
Operating Temperature : | ≤ 75 °C |
Shaft material : | plastic shaft can be metal shaft |
Total mechanical travel : | 260 ° ± 10 ° |
Resistance taper : | A , B , C |
End Resistance : | R≤10KΩ:10Ω Max R>10KΩ:50Ω |
Rotational noise: | ≤ 47mV |
Rotation torque : | 2--20mN.m |
perating Tem.: | <75°C |
Productspecificaties
- Artikelnummer
- IR63
